Web-based compact Central Control Host IR learning built-in

M4 Central Control Host with IR learning and WEB GUI programming

BYOD-M4000 is a 1U central control host with IR learning built-in, with 4-key push buttons for presets recall, able to create 11 sets control UI, it can be widely used for the command control center, office and building automation, multimedia environment and home automation centralized devices control, It combined programmable logic and protocol with programmable user interface together, provide full network and intelligent central control technology. It is essential equipment for command center and C’ISR system, it is widely used for administration center, building control, meeting room, training center, exhibition center, industry and home automation.

inquiry

Product details

Web-based Central Control Host demo video

Web-based Central Control Host Introduction

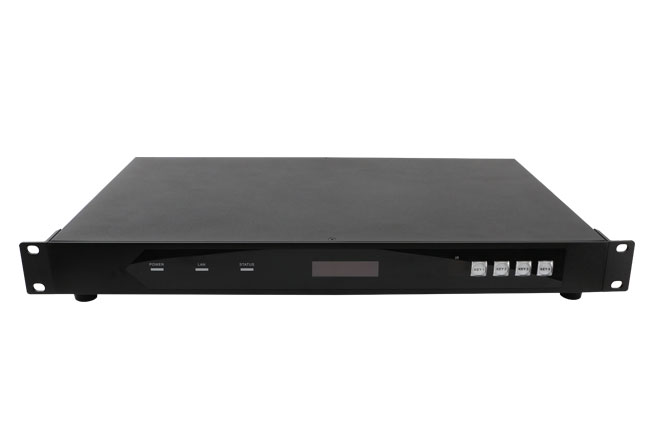

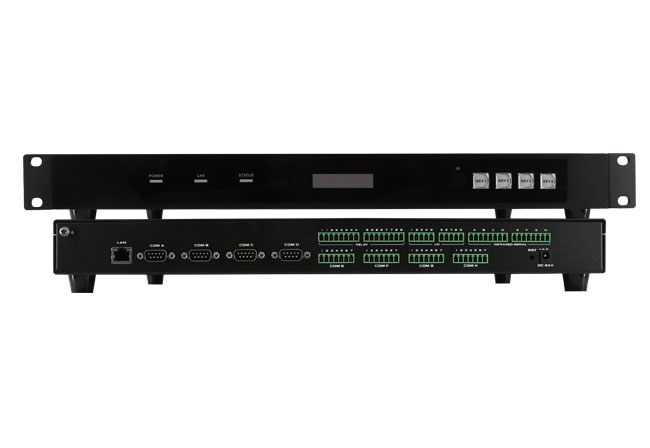

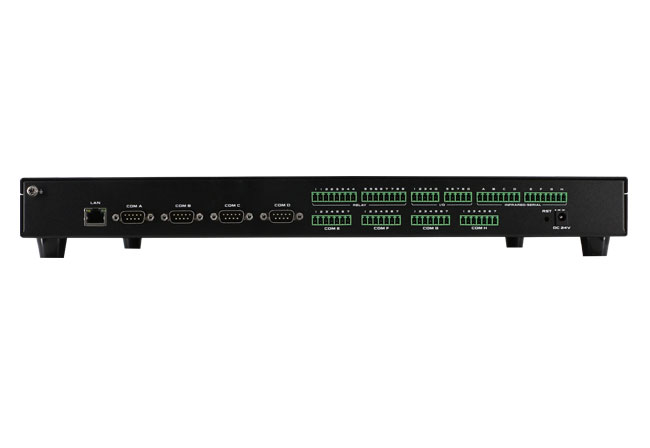

Web-based Central Control Host pictures

Web-based Central Control Host Features

· Cloud programming without installing softwaret

· Remote debugging

· Neural networks mode to inspect the real time operation

· Sharing resources on cloud platform

· Supports various network control protocols(TCP/UDP/Telnet/Http)

· 1*LAN(POE) port for WEB GUI programming

· 4*programmable push buttons

· With the IR learning built-in

· Linux 4.1.19/ CPU K3568 4core, ARM Cortex-A55 2.0GH

Web-based Central Control Host Technical Parameters

Type	BYOD-M5000-MINI
CPU	i.MX ARM Cortex-A7 528MHz
Operating system	Linux 4.1.15 kernel
Memory	512M DDR3 RAM
Flash	4096M EMMC
COM(A,B,C,D)	4*DB9 bi-directional RS-232
RELAY	8 * isolated low voltage relay (normally open) 30VDC/AC 1A
I/O	8 * Digital I/O input
INFRARED–SERIAL	8* infrared or one-way RS-232 serial port
LAN	1 - RJ45 10M/100M port(default IP 192.168.0.111)
RST	1 - RST system reset button
LED	3 – LED system status indicator
LCD	Front panel LCD screen
IR-Learning	IR-Learning window
Power Supply	24VDC 1A
Working Temperature	0 ºC~50
Relative humidity of working environment	10% to 90%
Size and weight	44019245 (mm), 3.9kg
