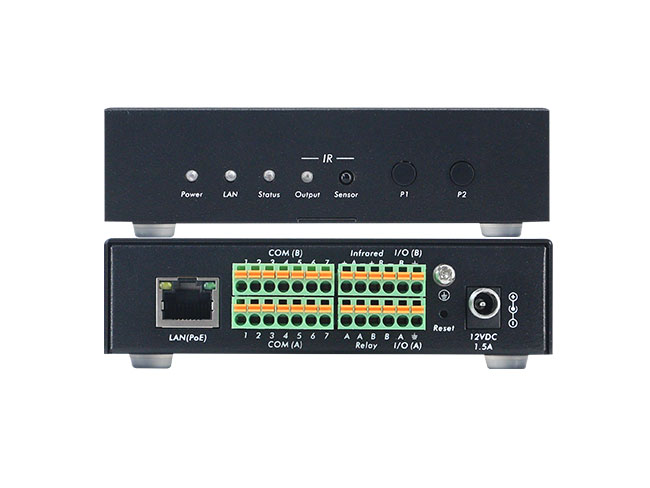

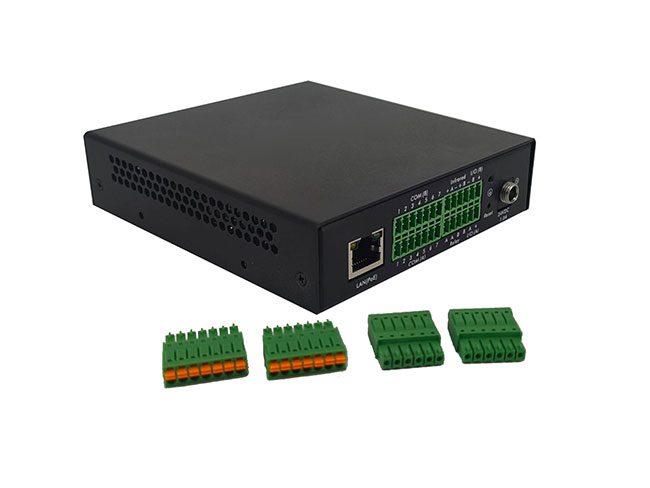

M5-MINI compact Central Control Host with IR learning and WEB GU

BYOD-M5000-MINI is a compact central control host with IR learning built-in, with 2-key push buttons for presets recall, able to create 11 sets control UI, it can be widely used for the command control center, office and building automation, multimedia environment and home automation centralized devices control, It combined programmable logic and protocol with programmable user interface together, provide full network and intelligent central control technology. It is essential equipment for command center and C’ISR system, it is widely used for administration center, building control, meeting room, training center, exhibition center, industry and home automation.

inquiry

Product details

Web-based Central Control Host Demo Video

Web-based Central Control Host Introduction

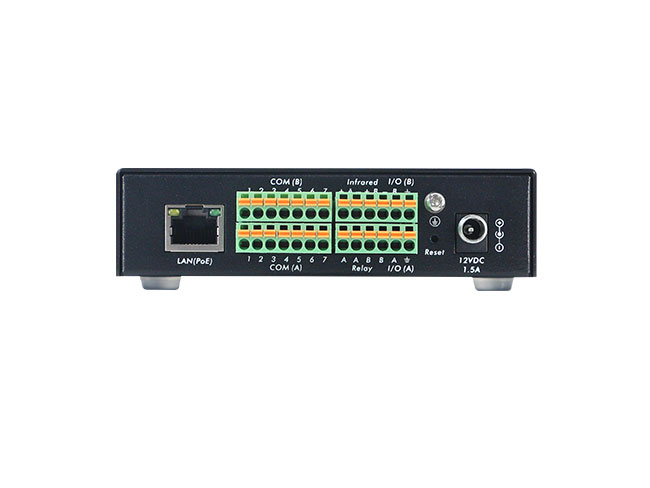

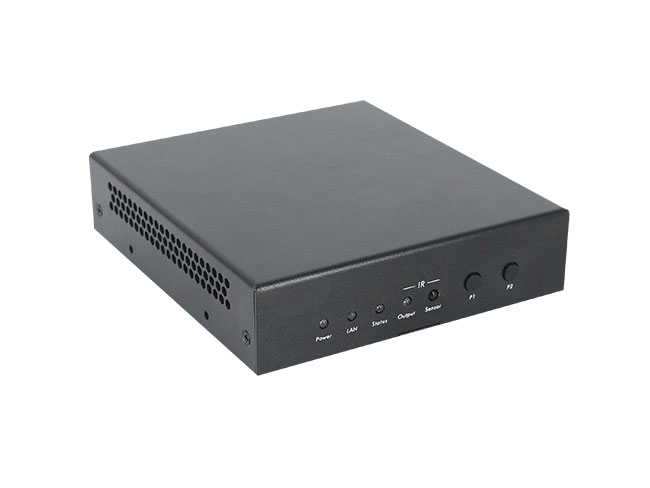

Web-based Central Control Host pictures

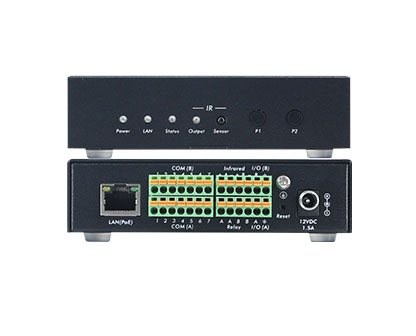

M5-MINI-compact-Central-Control-Host-with-IR-learning-and-WEB-GUI2

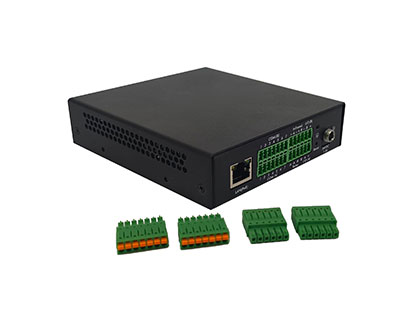

M5-MINI-compact-Central-Control-Host-with-IR-learning-and-WEB-GUI22

M5-MINI-compact-Central-Control-Host-with-IR-learning-and-WEB-GUI222

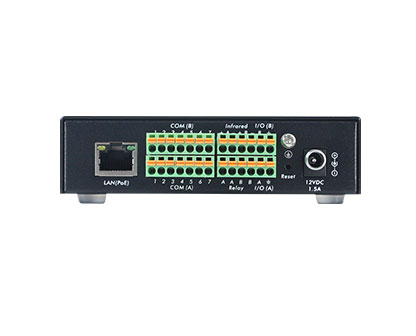

M5-MINI-compact-Central-Control-Host-with-IR-learning-and-WEB-GUI2222

Web-based Central Control Host Features

· Compact mini central control host

· 16*2-pin replay ports(30VDC/AC 1A)

· 2*2-pinI/O ports

· 2*2-pin IR or one-way RS-232 ports

· 2*7-pin RS-232/422/485 ports

· 1*LAN(POE) port for WEB GUI programming

· 4*programmable push buttons

· With the IR learning built-in

· Linux 4.1.19/ CPU K3568 4core, ARM Cortex-A55 2.0GH

· 2048M RAM, 8192M EMMC FLASH

Web-based Central Control Host Technical Parameters

Type	BYOD-M5000-MINI
CPU	K3568 4core, ARM Cortex-A55 2.0GH
Operating system	Linux 4.1.19
Memory	2048M RAM,
Flash	8192M EMMC
COM(A,B,C,D)	2*7-pin phoenix connector for RS232/422/485
RELAY	2 * isolated low voltage relay (normally open) 30VDC/AC 1A
I/O	2 * Digital I/O input
INFRARED–SERIAL	2* infrared or one-way RS-232 serial port
LAN	1- RJ45 10M/100M ports
RST	1 - RST system reset button
LED	3 – LED system status indicator
IR-Learning	IR-Learning window
Power Supply	24VDC 1A or POE
Working Temperature	0 ºC~50
Relative humidity of working environment	10% to 90%

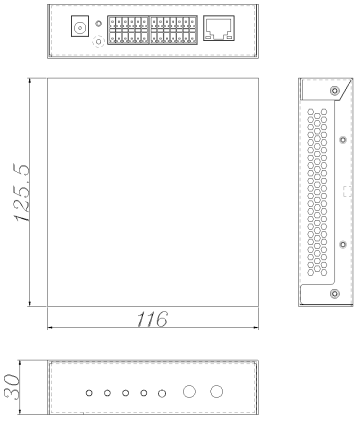

Size and weight	125.511630(mm), 200g
